fix40::IStateHandler Class Reference

会话状态处理器接口（状态模式） More...

#include <session.hpp>

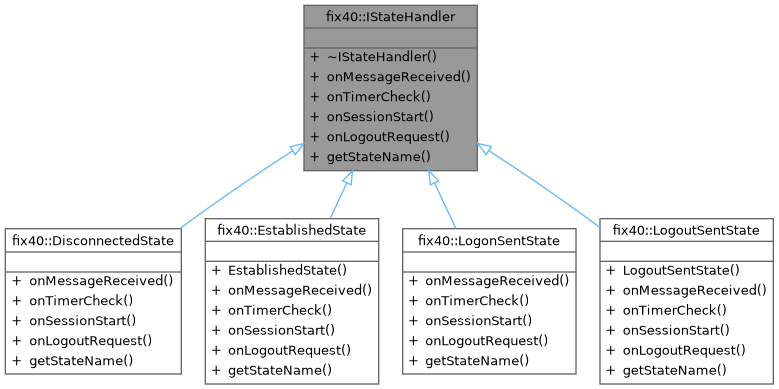

Inheritance diagram for fix40::IStateHandler:

Collaboration diagram for fix40::IStateHandler:

Public Member Functions
virtual	~IStateHandler ()=default
virtual void	onMessageReceived (Session &context, const FixMessage &msg)=0
	处理收到的消息
virtual void	onTimerCheck (Session &context)=0
	处理定时器检查事件
virtual void	onSessionStart (Session &context)=0
	处理会话启动事件
virtual void	onLogoutRequest (Session &context, const std::string &reason)=0
	处理登出请求
virtual const char *	getStateName () const =0
	获取状态名称

Detailed Description

会话状态处理器接口（状态模式）

定义会话在不同状态下的行为接口。 具体状态类（DisconnectedState、LogonSentState、EstablishedState、LogoutSentState） 实现此接口以处理各状态下的事件。

Constructor & Destructor Documentation

~IStateHandler()

virtual fix40::IStateHandler::~IStateHandler ( )

virtualdefault

Member Function Documentation

getStateName()

virtual const char * fix40::IStateHandler::getStateName ( ) const

pure virtual

获取状态名称

Returns

const char* 状态名称字符串

Implemented in fix40::DisconnectedState, fix40::LogonSentState, fix40::EstablishedState, and fix40::LogoutSentState.

onLogoutRequest()

virtual void fix40::IStateHandler::onLogoutRequest ( Session &  context, const std::string &  reason  )

pure virtual

处理登出请求

Parameters

context	会话上下文
reason	登出原因

Implemented in fix40::DisconnectedState, fix40::LogonSentState, fix40::EstablishedState, and fix40::LogoutSentState.

onMessageReceived()

virtual void fix40::IStateHandler::onMessageReceived ( Session &  context, const FixMessage &  msg  )

pure virtual

处理收到的消息

Parameters

context	会话上下文
msg	收到的 FIX 消息

Implemented in fix40::DisconnectedState, fix40::LogonSentState, fix40::EstablishedState, and fix40::LogoutSentState.

onSessionStart()

virtual void fix40::IStateHandler::onSessionStart ( Session &  context )

pure virtual

处理会话启动事件

Parameters

context

会话上下文

Implemented in fix40::DisconnectedState, fix40::LogonSentState, fix40::EstablishedState, and fix40::LogoutSentState.

onTimerCheck()

virtual void fix40::IStateHandler::onTimerCheck ( Session &  context )

pure virtual

处理定时器检查事件

Parameters

context

会话上下文

用于心跳发送、超时检测等周期性任务。

Implemented in fix40::DisconnectedState, fix40::LogonSentState, fix40::EstablishedState, and fix40::LogoutSentState.

---

The documentation for this class was generated from the following file:

• include/fix/session.hpp
